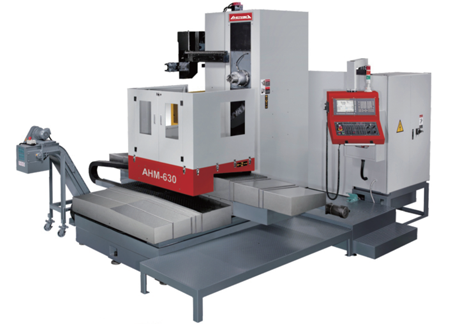

Technical characteristics

X, Y, Z axis travel: 1500x1200x1 OOOmm (standard)

                             1600x1200x1100mm (optional)

X, Y, Z axis rapid traverse: 15/12/15 m/min

Base three-wire rail

1° split rotary table (standard), 0.001° rotary table (optional)

BT50 spindle taper

Three-axis optical ruler

High-grade drill iron does not deform

All structural identification parts of this machine are completely made of high-grade cast iron (FC30), after tempering and internal stress relief treatment.

Large X, Y, Z axis travel

X, Y, Z axis travel 1500x1200x1000mm is much larger than competing models.

Slide type

X, Z axis rails.

Z axis is equipped with 3 branch rails, the total span is up to 1450mm °

Y-axis hard track-width increased by 18%.

Ultra-wide base 12% UP

The base width is increased by 12%.
