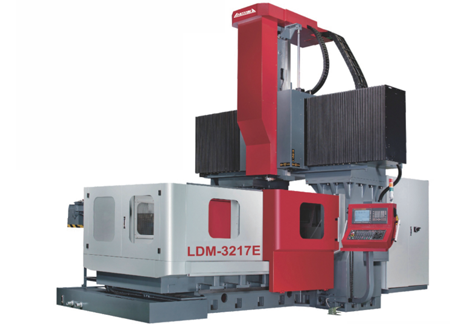

Technical characteristics

X-axis travel: 2200~4200mm. (Door width 1800, 2300mm)

Two-line rail on the base (X axis). (M55 roller type linear rail)

Y-axis two-line rail. (M65 roller type, two sliders per track)

Z-axis hard rail. (Optional wiring rail for Z axis, M65 roller type, two sliders per rail)

Stepped beams. (Arch bridge structure)

The contact surface between the sliding seat and the head is 970mm °

BT50, 4000rpm (6000rpm, 8000rpm) _Gear Gun Spindle°
