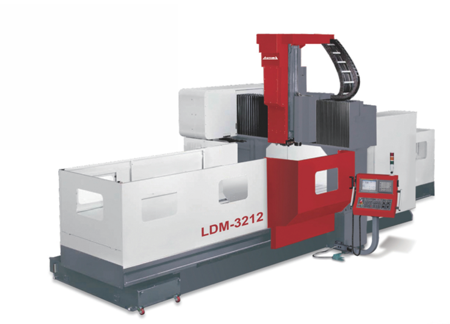

Technical characteristics

X-axis travel: 2200~3200mm. (Door width 1300, 1500mm)

Two-line rail on the base (X axis). (M45 ball type)

Y-axis two-line rail. (M55 wave bead type, two sliders per track)

Z-axis hard rail. (Z-axis optional wiring rail, M55 roller type, two sliders per rail)? Integrated door beam.

BT50, 6000rpm gear type spindle.
