Technical characteristics

The standard spindle is 3500rpm, the diameter is 130mm, and the maximum torque can reach 1323.2Nm with powerful cutting force.

The movable column structure X-axis table can reach the maximum wearing weight.

All track surfaces are supported by the main wall with excellent rigidity.

In order to cooperate with customers for 3D high-speed mold cutting, 4000rpm belt type spindle (maximum torque of 992.4Nm) or 6000rpm belt type spindle (maximum torque of 661.6Nm) can be selected.

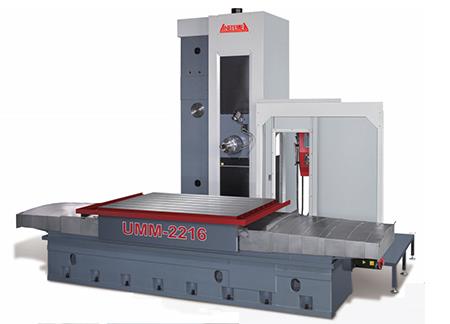

This machine is equipped with ATC and automatic vertical and horizontal milling head (3500rpm) for UMM-2216
